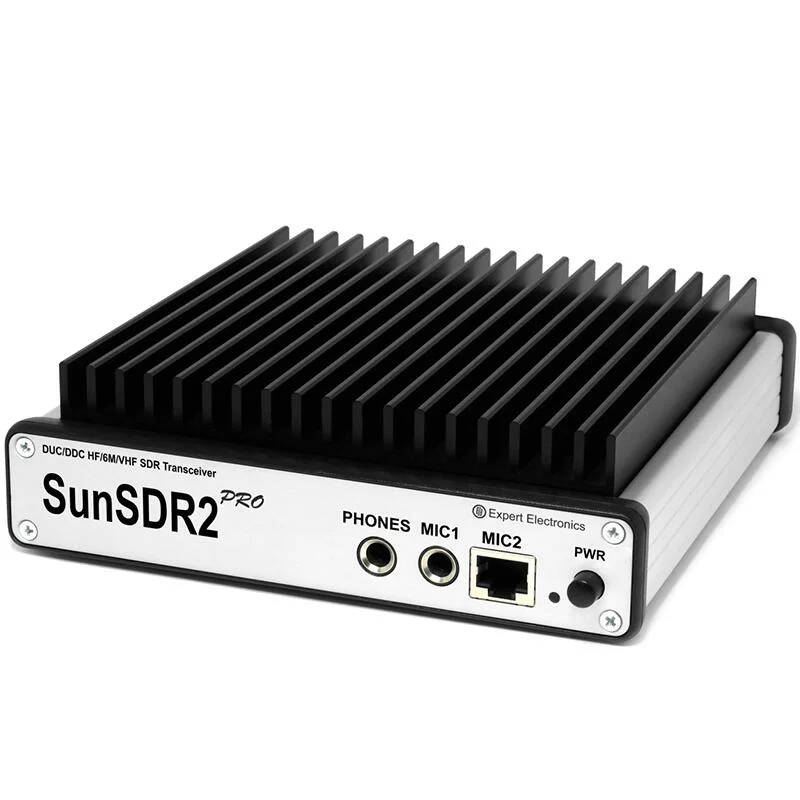

SunSDR2 PRO Transceiver, HF-6M 15W, VHF 8W

Main capabilities Independent RX path based on DDC (Direct Down-Conversion) architecture Independent TX path based on DUC (Direct Up-Conversion) architecture 2 software RXs + SubRX for each of them (4 slices total) + independent wideband Bandscope up to 80 MHz Remote control operation, using it, you connect PTT and CW-key to the E-Coder panel. Microphone and E-Coder are connected to the remotely set up PC TCI interface for seamless connection with third-party software, the list of software with TCI support Professional TX processing module provides the most advanced tuning capability for voice operation ExtCTRL connector to control external devices with 8 powerful keys with open collector ALC connector for external power amplifiers* Supports use of VHF transverters** An opportunity to use the transceiver as a signal generator via DAC OUT connector (SMA connector) An opportunity to use external filters in the middle of the RF path, using ADC IN and RX OUT (SMA connector) Monitoring delay in CW mode is about 5-6 ms Input for external 10 MHz reference oscillator An opportunity to use the transceiver in SO2V mode Full duplex or half duplex modes*** Antenna switch with 2 HF antenna conn
