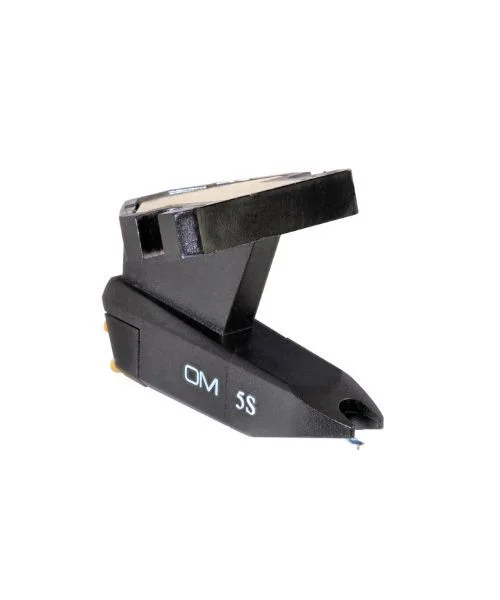

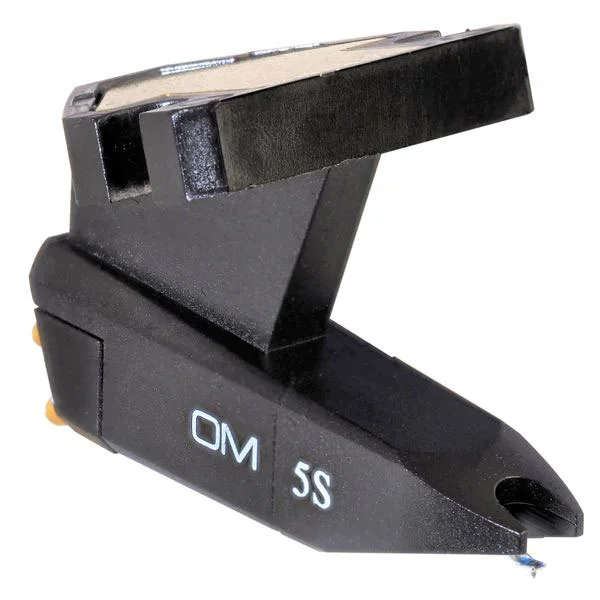

Ortofon OM 5S - Σφαιρική κεφαλή πικάπ

The OM 5S features Spherical stylus, robust and economic solution for play back of vinyl records. If your tonearm has a standard headshell or a cartridge mount, then step up to optimal sound reproduction with OMs. A glance at any one of these cartridges will reveal Ortofon's answer to perfect tonearm matching. Ingeniously tucked into the top of the mounting bracket is a tiny, removable weight-plate. If your tonearm is a standard tonearm, just leave the weight-plate. If your tonearm is one of the low mass types, then simply remove the weight. The mass of your OM cartridge is now a mere 2.5 g. Channel balance at 1 kHz: 2 dB Output voltage at 1 kHz, 5cm/sec: 4.5 mV Channel separation at 1 kHz: 20 dB Frequency response 20 Hz - 20 kHz: 20-20.000 Hz Tracking ability at 315 Hz: 60 µm Compliance, dynamic, lateral: 20 µm/mN Stylus type: Spherical Stylus tip radius: R 18 µm Tracking force, recommended: 1.8 g Tracking angle: 20° Internal impedance, DC resistance: 750 Ohm Cartridge colour: Black/Black Cartridge weight: incl. extra weight 5 g, excl. extra weight 2.5 g Recommended load resistance: 47 kOhm Internal inductance: 450 mH Recommended load capacitance: 200-500 pF
